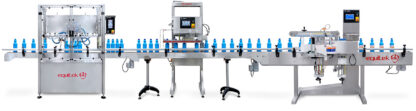

Linear Capping and screw Machine

The ERAL series consist of a system of bands, which hold the package and guide it through a lid placement system and, subsequently, a system of bands that screw the lid and give it the required torque. This system is very practical and versatile, since it can handle different types of packages and lids with minimal tool changes. The equipment is easily coupled to the conveyor of the packaging system, or to the entrance of the labeling machine by means of a conveyor extension. The ERAL series can work in synchronization with a lid guide, either from the OTB, OTV or OTD series.

Share:

Share on facebook
Share on twitter
Share on linkedin
Share on email
Share on whatsapp

Description

Linear Capping and screw Machine

TECHNOLOGY
The technology of this equipment consists in a system of bands, activated by motor reducers, and equipped with inverters of frequency, which are controlled by means of a PLC. This PLC controls, in synchronized form, the translation of the container along with the speed the direction of the screw-on cover bands; it has a digital touch screen, in which the operating values are easily established.
The PLC has the capacity to store operating recipes and to save the parameters of different applications in a practical way, facilitating the change of presentation.

USES AND/OR APPLICATIONS
Capping of new containers from 100 ml to 1500 ml.

Foods
Oil and Lubricants
Pharmaceutical
Paintings
Flavored liquid
Agrochemicals
Cleaning products
Natural products
Alcoholic liquid
Cosmetics

CAUTION
It shall not be used for fragile containers that do not support capping pressure. For more information, consult Equitek.

Additional information

Solution

Pieces per hours

Cap diameter

20-55 mm

Container Size

50ml – 5lt

Torque

5 to 32

Report Management

Yes

Ethernet Connection

Yes

Electrical Requirement

220V 50/60 Hz

Optional

440V-3F 50/60hz

Cap Type

Screw capping
